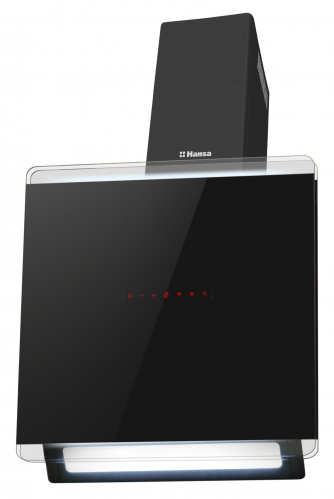

OKP6655SH
1161220
Specification
FEATURES
| Air flaps Yes | Delay Yes | FrameOn Yes |
| Maximum time of delay 15 ' | Montage template Yes | Panel - language version Pictograms |
| Protection class of electric shock I_Class | Type of work Extraction/Recirculation |
Equipment
| Gesture control Yes | Number of carbon filters 2 | Number of grease filters 1 |
| Number of layers in grease filter 5 | Number of speed 4 | Type of control Sensor |
| Type of display LCD | Type of grease filters Aluminium frame | Carbon filter type FWP 18 |
Technical data
| Frequency 50 | Air flow at 1 speed - extractor by EN 61591 382 m3/h | Air flow at 2 speed - extractor by EN 61591 476 m3/h | |||||||||||||||||||||||||||||||||||||
| Air flow at 3 speed - extractor by EN 61591 619 m3/h | Air flow at 4 speed - extractor by EN 61591 700 m3/h | Air Flow at Intensive or Boost Setting [If Available] 700 m3/h | |||||||||||||||||||||||||||||||||||||
| Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 619 m3/h | Air Flow at Minimum Speed in Normal Use 382 m3/h | Air Flow Rate at Best Efficiency Point - Q BEP 364 m3/h | |||||||||||||||||||||||||||||||||||||
| Air Pressure at Best Efficiency Point P BEP 408.6 Pa | Annual energy consumption 49.1 kWh | Average Illumination of the Lighting System on the Cooking Surface - E middle 123.6 lux | |||||||||||||||||||||||||||||||||||||
| Container qty 40'HQ 276 | Control panel on one side/two sides One side | Country of Origin on Rating Label Made in PRC | |||||||||||||||||||||||||||||||||||||
| Dimensions of grease filter 297x262 mm | Display color Red | Distance from light cover to wall 36 mm | |||||||||||||||||||||||||||||||||||||
| Distance to electric hob 450 mm | Distance to gas hob 650 mm | Electric Power Input at Best Efficiency Point - W BEP 137.1 W | |||||||||||||||||||||||||||||||||||||
| Fluid Dynamic Efficiency - FDE hood 30.1 | Fluid Dynamic Efficiency Class A | Grease Filtering Efficiency - GFE hood 57 % | Grease Filtering Efficiency Class E | Intensive or Boost Setting Auto-Off time 5 ' | Internal/external motor Internal | Main lighting colour temperature [K] 6500 | Lighting Efficiency - LE hood 22.5 lux/W | Lighting Efficiency Class B | Lighting Efficiency Class B | Limitation of Exhaust Air - t limit 9 ' | Maximum Possible Air Flow 700 m3/h | Motor unit rated power 300 W | Motor type/model E series | Net depth 475 mm | Net height max 1420 mm | Net height min 940 mm | Net weight 25.38 kg | Net width 600 mm | Noise level at 1 speed - extractor by EN 60704-2-13 59 dB | Noise level at 2 speed - extractor by EN 60704-2-13 66 dB | Noise level at 3 speed - extractor by EN 60704-2-13 68 dB | Noise level at 4 speed - extractor by EN 60704-2-13 69 dB | Nominal Power of the Lighting System - W L 5.5 W | Number of motor units 1 | Number units of main lighting 1 | Air exhaust diameter 150 mm | Type of plug or cable Euro plug | Power Consumption in Standby Mode - Ps 0.43 W | Power Consumption in Off Mode - Po 0.23 W | Power cabel length 120 cm | Power rating 308 W | Power Supply Voltage 230V | Power unit of main lighting 4 W | Sound Power Emission at Intensive or Boost Setting [if available] 69 dB | Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 68 dB | Sound Power Emission at Minimum Speed Available in Normal Use 59 dB | Noise level 68 dB | Time Increase Factor - f 0.9 | Type of main lighting LED panel |
